IBM ZD&TPersonal Edition
This page was auto-translated from Spanish

Renew USB Token License

It's preferable to do this a month or two in advance in case we have any problems generating the new license file. If there is any issue generating the new license, we would have time to contact support and have them review the case. We can even do this process every 6 months, since it doesn't take much time.

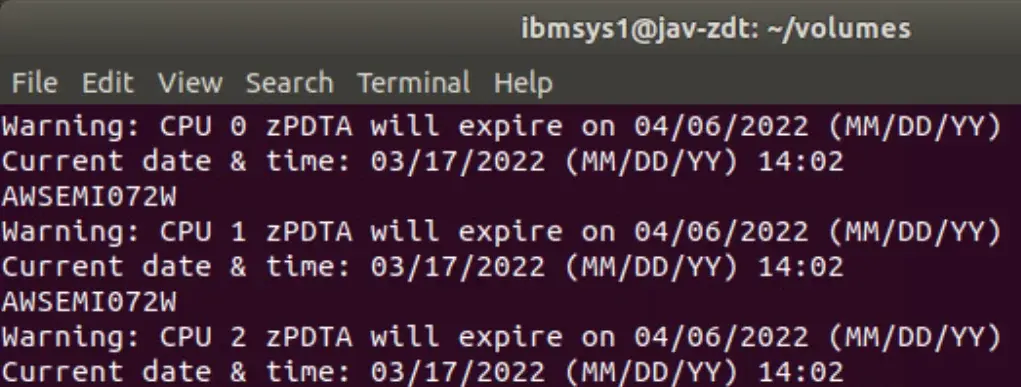

In the terminal where I have the zPDT program active, I have already received warnings to renew the license.

IBM ZD&T PE - Renew USB Token License – screenshot 1

We will follow the following steps to generate the new license: https://www.ibm.com/docs/en/zdt/13.3.0?topic=key-returning-existing-license

Return Current License

To generate a new license file, we must first return the current license.

This consists of telling the system that we will no longer use that license, in order to generate a new one.

We enter:

https://licensing.flexnetoperations.com/

You can check the following link for more help:

https://www.ibm.com/support/pages/ibm-support-licensing-start-page

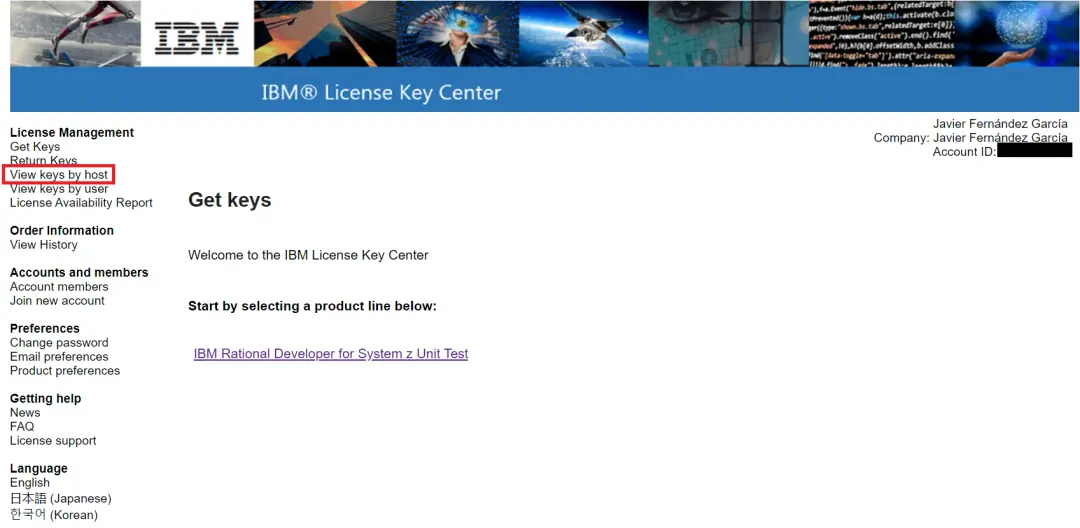

We go to View keys by host.

IBM ZD&T PE - Renew USB Token License – screenshot 2

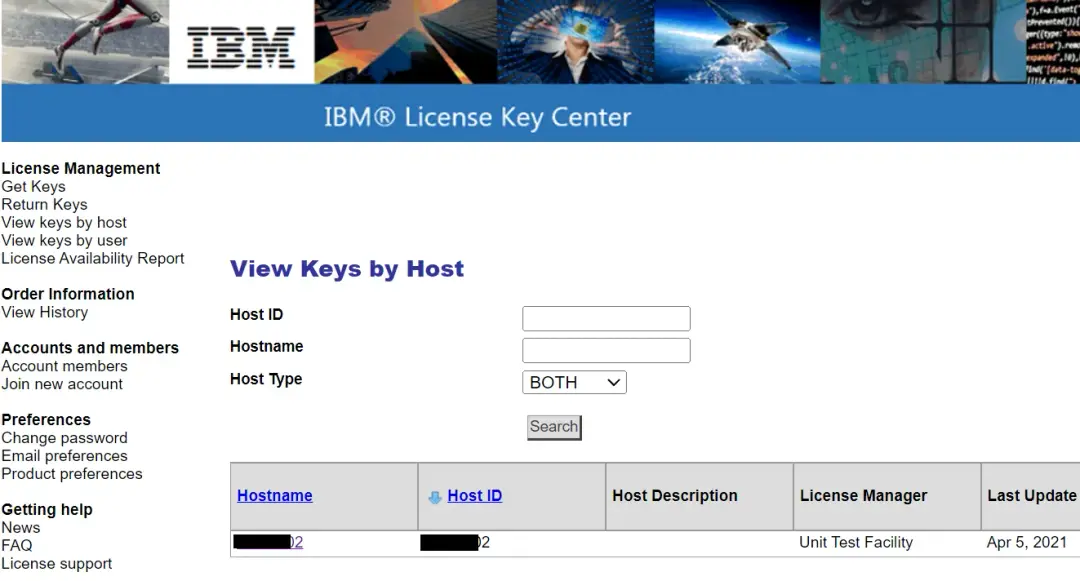

We enter the corresponding product. In my case, I only have one.

IBM ZD&T PE - Renew USB Token License – screenshot 3

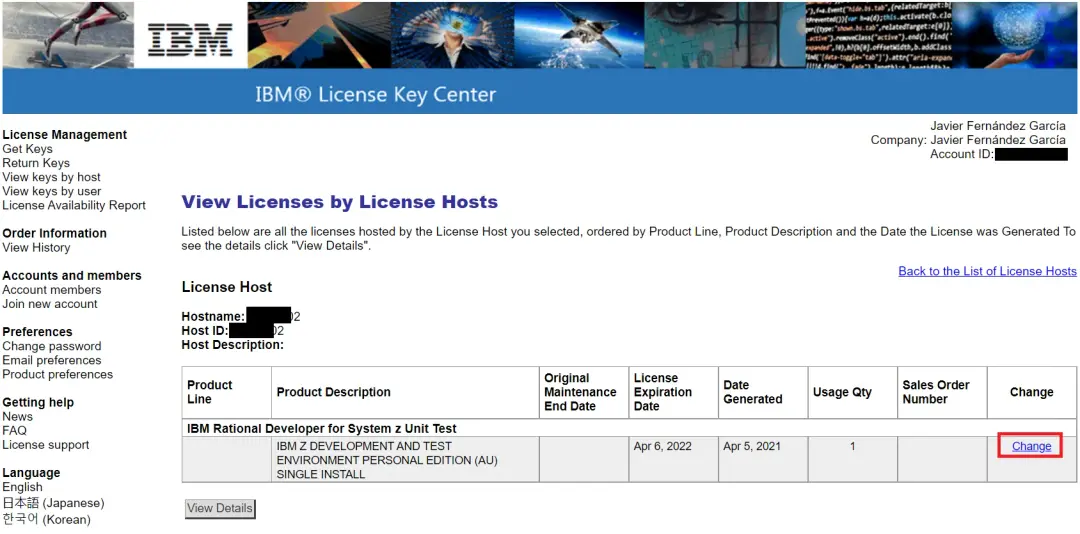

On the corresponding license, click Change. In my case, the license will expire on April 6, 2022.

IBM ZD&T PE - Renew USB Token License – screenshot 4

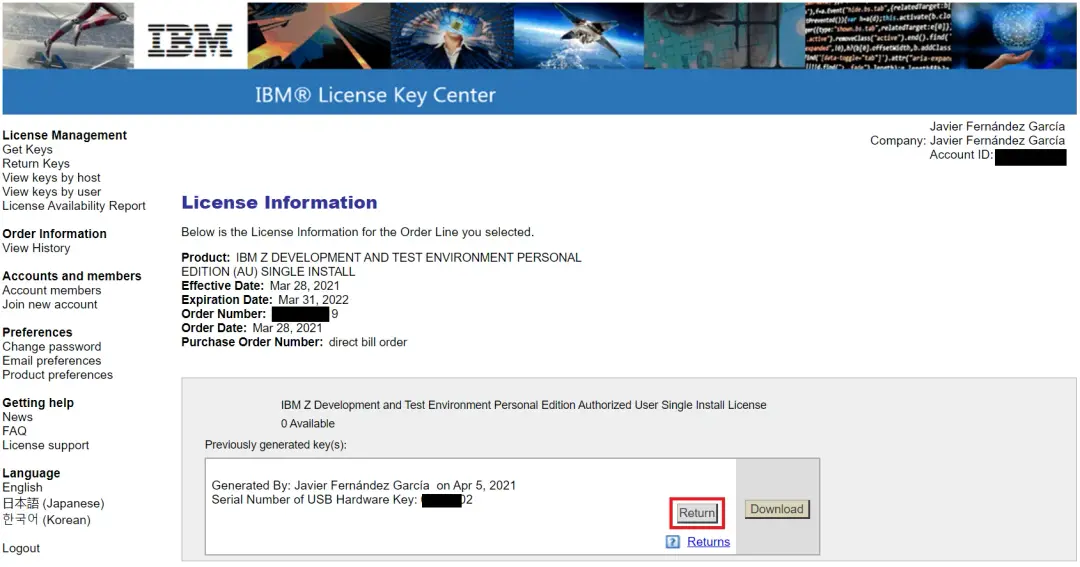

With the Return button we return the license

IBM ZD&T PE - Renew USB Token License – screenshot 5

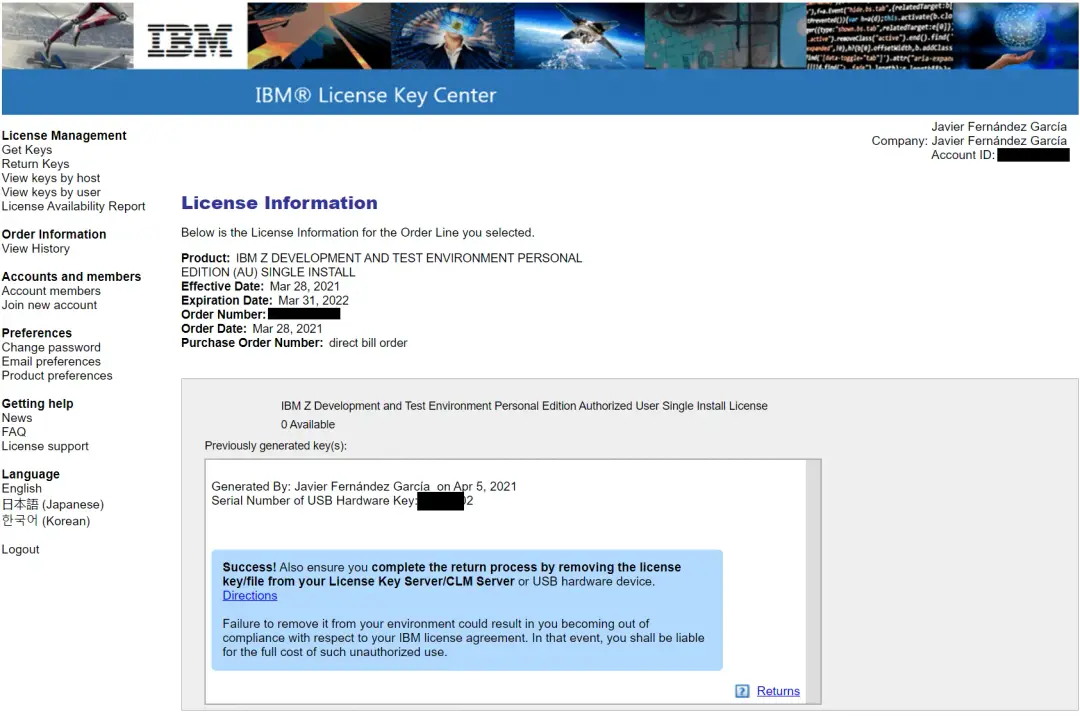

We will see the confirmation that it has been returned correctly.

IBM ZD&T PE - Renew USB Token License – screenshot 6

Generate New License File

Enter the product again.

IBM ZD&T PE - Renew USB Token License – screenshot 7

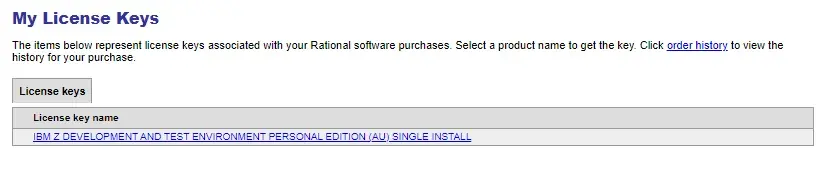

Enter the available license.

IBM ZD&T PE - Renew USB Token License – screenshot 8

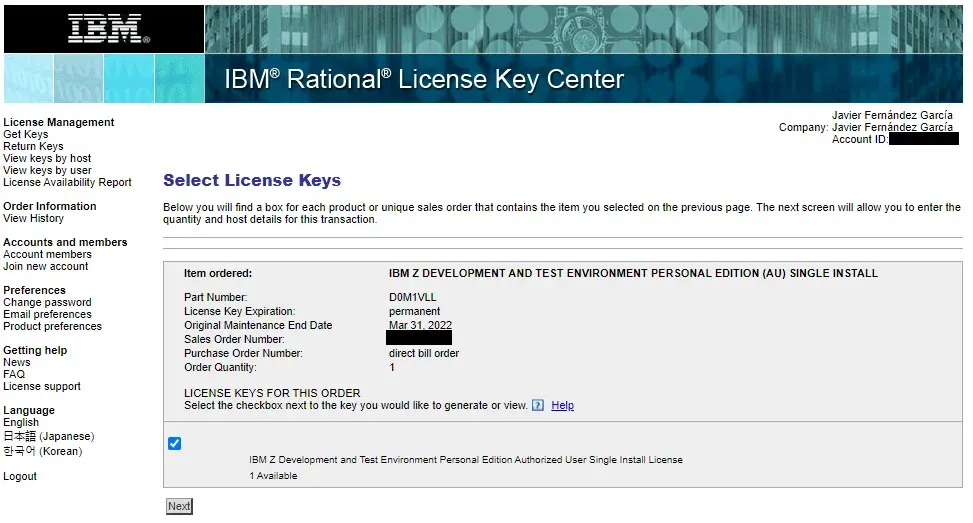

Click Next.

IBM ZD&T PE - Renew USB Token License – screenshot 9

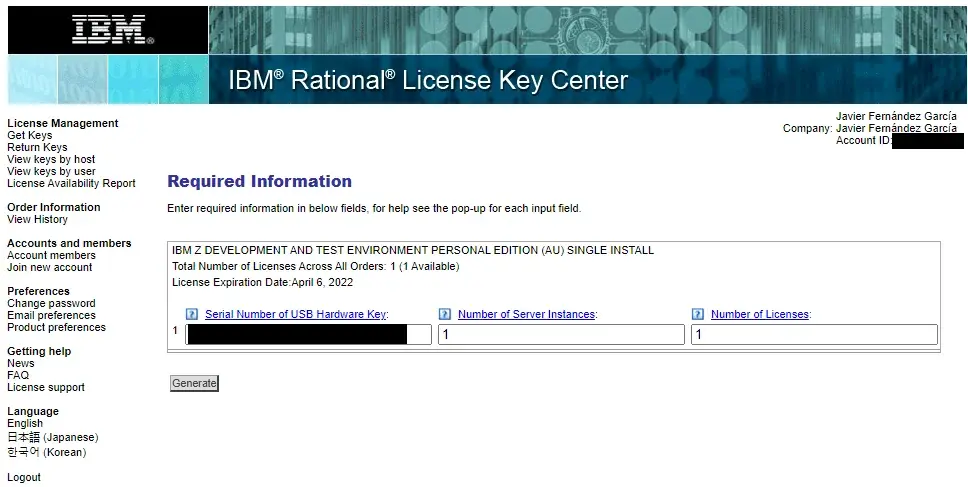

Enter the data.

IBM ZD&T PE - Renew USB Token License – screenshot 10

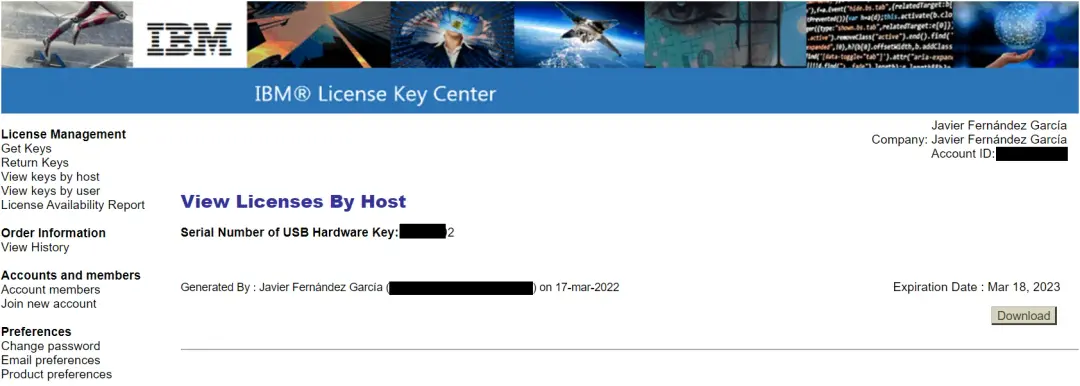

Download the license file.

IBM ZD&T PE - Renew USB Token License – screenshot 11

Update License on USB Token

We transfer the license file to the system where we have ZDT installed. Go to the folder:

cd /usr/z1090/bin/

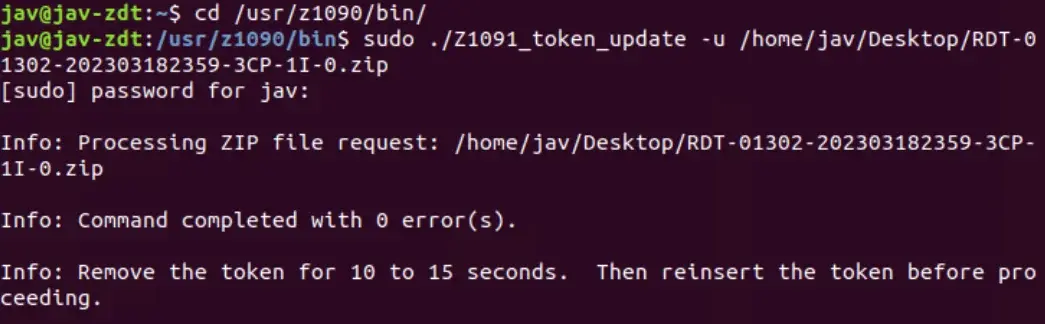

Now we will issue the command to apply the license. In my case:

sudo ./Z1091_token_update -u /home/jav/Desktop/RDT-01302-202303182359-3CP-1I-0.zip

When finished, you will need to disconnect the token for 10-15 seconds.

IBM ZD&T PE - Renew USB Token License – screenshot 12

It's also necessary to restart the license server, but in my case, since I had to restart the PC, I didn't do it.

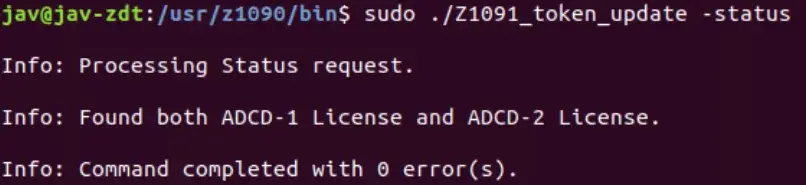

When we reconnect the token, we can check the license status with the command:

sudo ./Z1091_token_update -status

IBM ZD&T PE - Renew USB Token License – screenshot 13

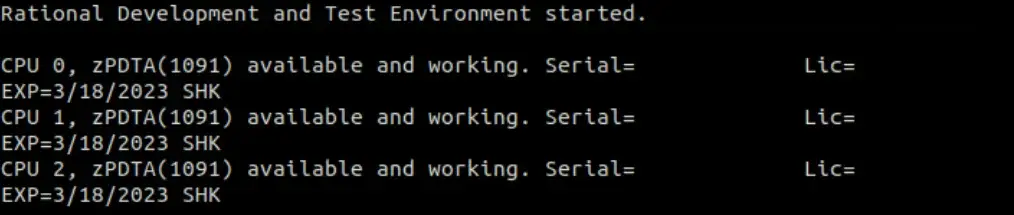

When starting the system we can check the new date on which the license will expire.

IBM ZD&T PE - Renew USB Token License – screenshot 14
